ModelMPX-8503-AFAG
ATX VersionATX 12V Ver. 3.0
PFCActive PFC

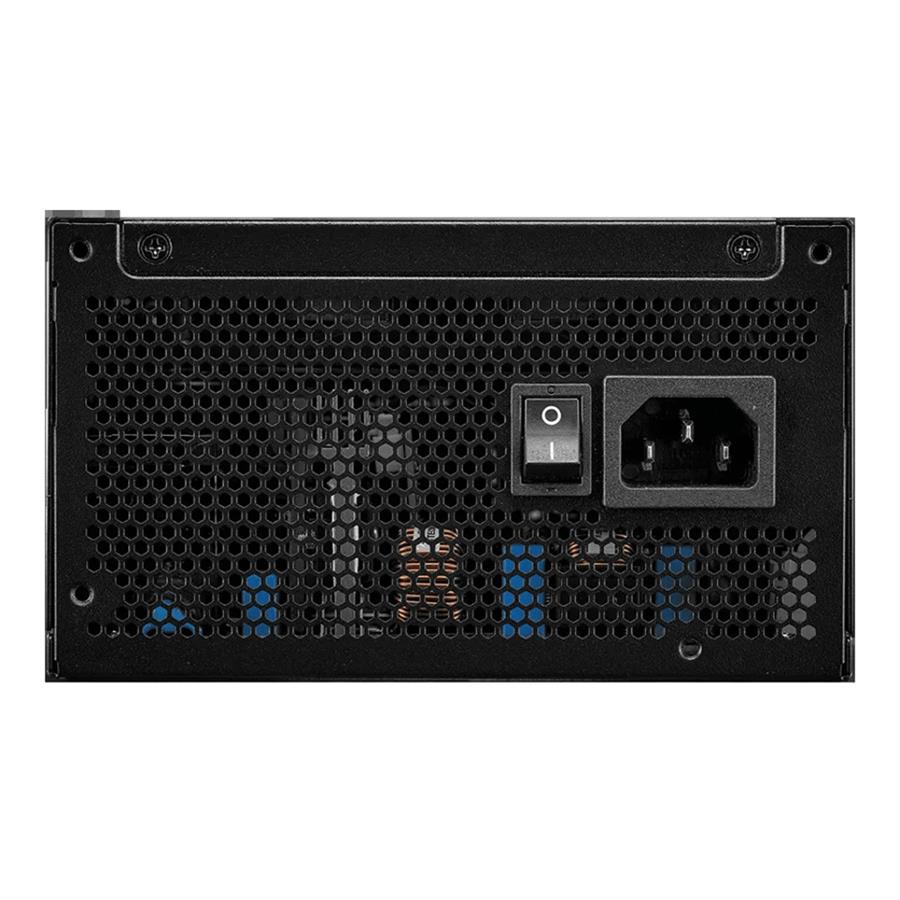

Input Voltage100-240V
Input Current10-5A
Input Frequency50-60Hz
Dimensions (L x W x H)160 x 150 x 86 mm

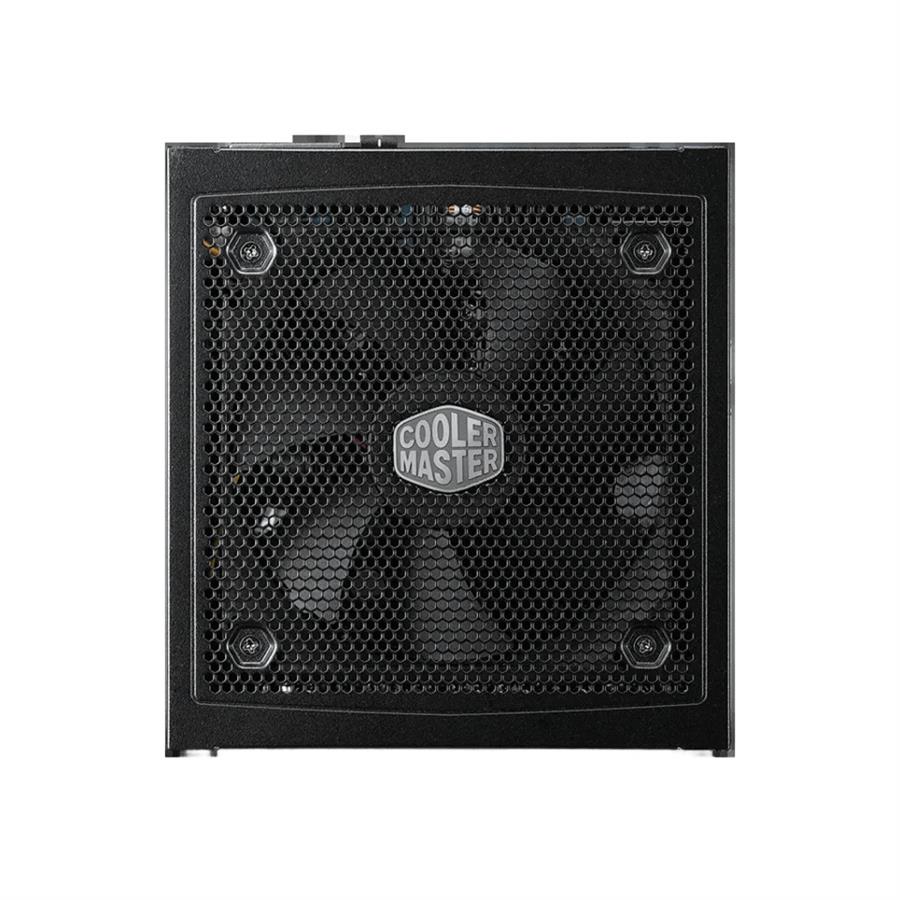

Fan Size135mm
Fan BearingHDB
Fan Speed1900 RPM
Efficiency≥90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ErP 2014 Lot 3Yes
Operating Temperature0-50°C
Power Good Signal100 - 150 ms
Hold Up Time>16ms
MTBF>100,000 Hours
ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

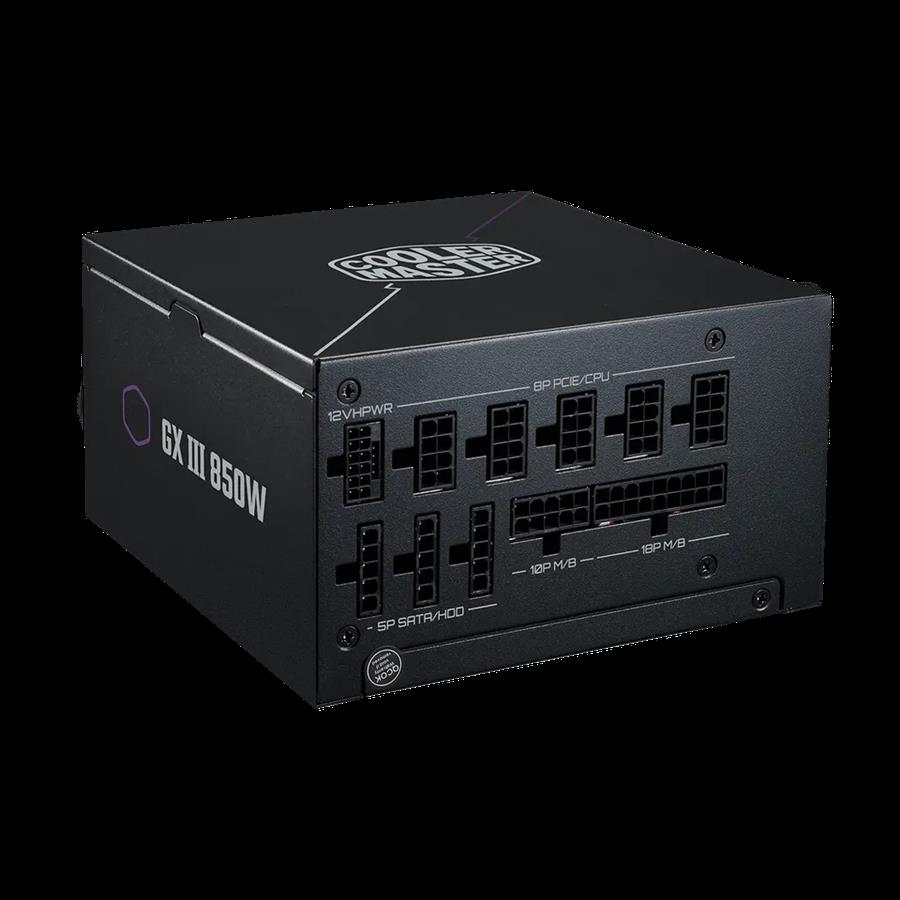

ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors8
Peripheral 4 Pin Connectors4
PCI-e 6+2 Pin Connectors3
12VHPWR Connector1
SeriesGX Series
80 PlusGold
ModularFully Modular
CategoryAbove 750W
Form FactorATX
Watts850W
